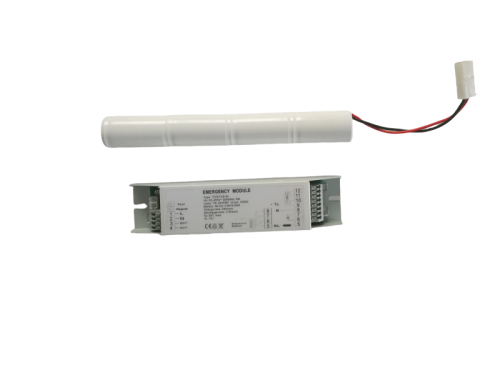

Name: 40W Fluorescent Tube Emergency Inverter with Rechargeable Battery Pack
Brand: Topwell Power - Professional Lithium Battery Manufacturer
SKU: TWE0482
Availability: InStock
Rating: 5 (1 reviews)

Home > Emergency Conversion Kit > Reduced Power Type

40W Fluorescent Tube Emergency Inverter with Rechargeable Battery Pack

Description Brand Introduction Review

Description

Product Specifications

Item	Specifications	Remark
Model No.	FLL40W
Emergency Power	12W	Brightness: 30%
Output Voltage	DC 220V
Input Voltage	AC 85-265V, 50/60Hz
Input Current	0.35A Max
Working Voltage	DC 400V
Emergency Time	3hours
Emergency Switching Time	<1s
Inverter Dimensions	172x40x30mm (LxWxH)	Housing material: galvanized iron plate
IP Rating	IP20	Built-in installation
Operating Ambient Temperature	-20~50°C
Battery Type	NiCd	Option: NiMH & Li-ion battery
Battery Capacity	4000mAh
Battery Voltage	4.8V
Battery Charging Time	24hours
Protection Features	Overload Protection, Short Circuit Protection, Overvoltage Protection, Over-temperature Protection, Overcurrent Protection

Product Showcase

Features

1. Smart IC Control: Automatically activates the light source for emergencies when power is off and transitions to charging mode when power is restored.
2. Emergency Output DC: Suitable for various LED lighting circuits, offering exceptional adaptability.
3. Reduced Power Output In Emergency
4. High Reliability and Efficiency: 90% efficiency with standby power below 0.5W.
5. Sufficient Design Power: This system can provide the required power output during a power outage.
6. Comprehensive Battery Protection: Features auto-stop at 80% of the rated voltage during emergencies.
7. Customizable Emergency Time: 1-3 hours of emergency lighting with adjustable battery capacity.
8. Flexible Battery Options: Customizable based on customer needs.
9. Rapid Emergency Conversion: Quick transition in under 0.1 seconds during outages.
10. Compact Design: Small, easy to install, suitable for various applications.

Installation Method

1. Split Type: Installed inside the lamp bracket, perfect and safe wiring greatly facilitates the customer's installation and use;
2. Integrated Type: Assembled with a white cold-rolled steel shell, It can be installed on the top of the wall, ceiling, and wall;
3. L (live wire) and N (neutral wire): Must always be connected for continuous charging; no external switches allowed;
4. SL (live wire): Controls constant lighting. Connect to an external switch or short with L for continuous light; leave unconnected for emergency use only;
5. Other Wiring: Must be strictly connected according to the wiring diagram

Wiring Diagram

Emergency Conversion Kit for Fluorescent Lamps

Model	TWE-FLL14W	TWE-FLL18W	TWE-FLL28W	TWE-FLL36W	TWE-FLL54W	TWE-FLL58W
Fluorescent Lamp	14W T5	18W T8	28W T5	36W T8	54W T5	58W T8
Emergency Power	4W	4W	8W	8W	12W	12W
Emergency Time	1hour/2hours/3hours
Inverter	Brightness 20-35%
Battery Type	NiCd/NiMH/Li-ion Battery
Battery Spec	3.6V 1.5Ah/2.5Ah/4Ah, 3.7V 1.5Ah/2.5Ah/4Ah	3.6V 1.5Ah/2.5Ah/4Ah, 3.7V 1.5Ah/2.5Ah/4Ah	4.8V 1.5Ah/2.5Ah/4Ah, 7.4V 1.5Ah/2.5Ah/4Ah	4.8V 1.5Ah/2.5Ah/4Ah, 7.4V 1.5Ah/2.5Ah/4Ah	6V 1.5Ah/2.5Ah/4Ah, 7.4V 1.5Ah/2.5Ah/4Ah	6V 1.5Ah/2.5Ah/4Ah, 7.4V 1.5Ah/2.5Ah/4Ah
Battery Life	500 cycles	500 cycles	500 cycles	500 cycles	500 cycles	500 cycles

Application Scenario


Hotel	Shopping Mall	Garage	School	Hospital	Venue

Precautions

Use the designated battery and ensure all connections are correct and secure; avoid reverse polarity;
For testing, unplug the battery pack when disconnecting mains power. Reconnect only after the emergency device is off to prevent accidental damage;
Follow the wiring diagram exactly; avoid overload and no-load conditions;
To extend battery life, turn off all indicator lights during power outages;
Charge for 24+ hours before use. Perform 3-5 full charge cycles to check capacity and emergency time;
Avoid long-term storage of exhausted batteries; fully charge them if not in use for extended periods.

Service Comittment

Timely, accurate, and high-quality delivery and service.
Three-year warranty; unconditional replacement for quality issues (excluding human factors).
Professional maintenance required; report any issues for timely repair or support.
